2-Section Telescopic Belt Conveyor for Truck Loading & Unloading

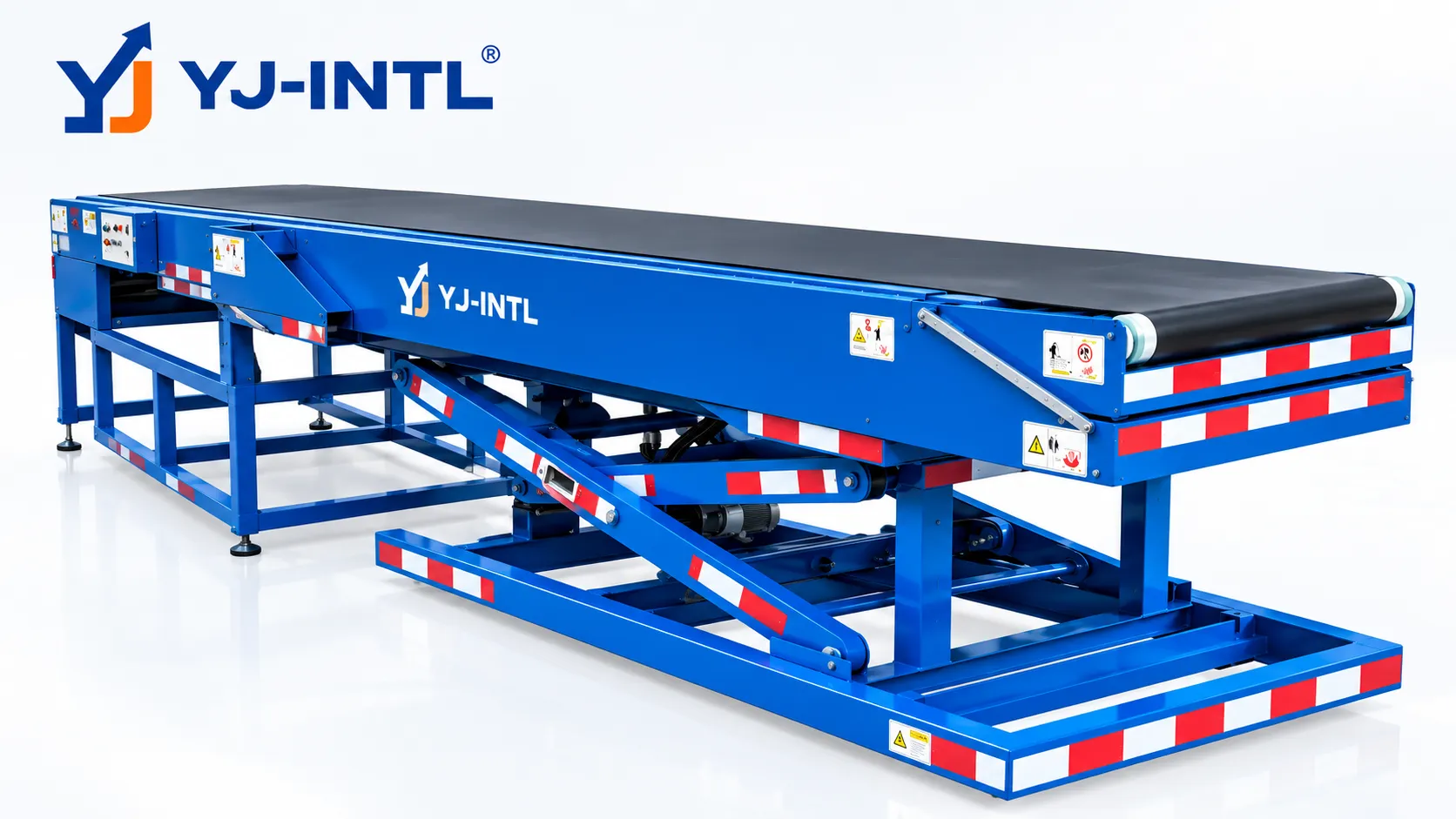

The YJ-INTL 2-Section Telescopic Belt Conveyor is designed to bring the conveying point closer to the inside of trucks, trailers and loading bays, reducing the need for workers to repeatedly carry goods between the dock and vehicle.
Its two-section telescopic structure combines a fixed conveyor section with an extendable section, allowing the conveyor to reach deeper into the loading area while maintaining a compact footprint when retracted. The system is suitable for cartons, parcels, bags and other packaged goods handled in warehouses, distribution centers, express logistics hubs and manufacturing facilities.
- 2-Section Telescopic Structure
- 3,000–7,000 mm Fixed Section
- 2,000–6,000 mm Maximum Extension
- 10–40 m/min Conveying Speed
- 10 m/min Variable Telescopic Speed
- Up to 80 kg/m² Rated Load
- 3 mm PVK Impact-Resistant Composite Belt
Technical Specifications
| Specification | Details | Specification | Details |
|---|---|---|---|
| Conveyor Type | 2-Section Telescopic Belt Conveyor | Structure | Fixed Section + Extendable Section |
| Fixed Section Length | 3,000 / 4,000 / 5,000 / 6,000 / 7,000 mm | Maximum Extension | 2,000 / 3,000 / 4,000 / 5,000 / 6,000 mm |
| Minimum Equipment Height | ≥610 mm | Equipment Weight | Approx. 1.3–2.1 T |
| Conveying Speed | 10–40 m/min, variable | Telescopic Speed | 10 m/min, variable |
| Rated Load | ≤80 kg/m² | Belt | 3 mm PVK impact-resistant composite belt |
| Conveyor Motor | 1.5 kW | Telescopic Motor | 0.4 kW |
| Drive Control | Variable-frequency drive | Belt Connection | Mechanical fastener connection |
| Height Adjustment | Optional hydraulic lifting configuration | Platform | Optional station platform |
| Mobility | Optional powered or movable roller configuration | Other Options | Counter, top brush and other project-specific configurations |
Details
Product Overview
The YJ-INTL 2-Section Telescopic Belt Conveyor is designed to bring the conveying point closer to the inside of trucks, trailers and loading bays, reducing the need for workers to repeatedly carry goods between the dock and vehicle.
Its two-section telescopic structure combines a fixed conveyor section with an extendable section, allowing the conveyor to reach deeper into the loading area while maintaining a compact footprint when retracted. The system is suitable for cartons, parcels, bags and other packaged goods handled in warehouses, distribution centers, express logistics hubs and manufacturing facilities.
With configurable fixed and extension lengths from 3,000 to 7,000 mm and maximum extension sections from 2,000 to 6,000 mm, the conveyor can be engineered around dock dimensions, vehicle loading depth and material-flow requirements.
Designed Around the Loading Dock

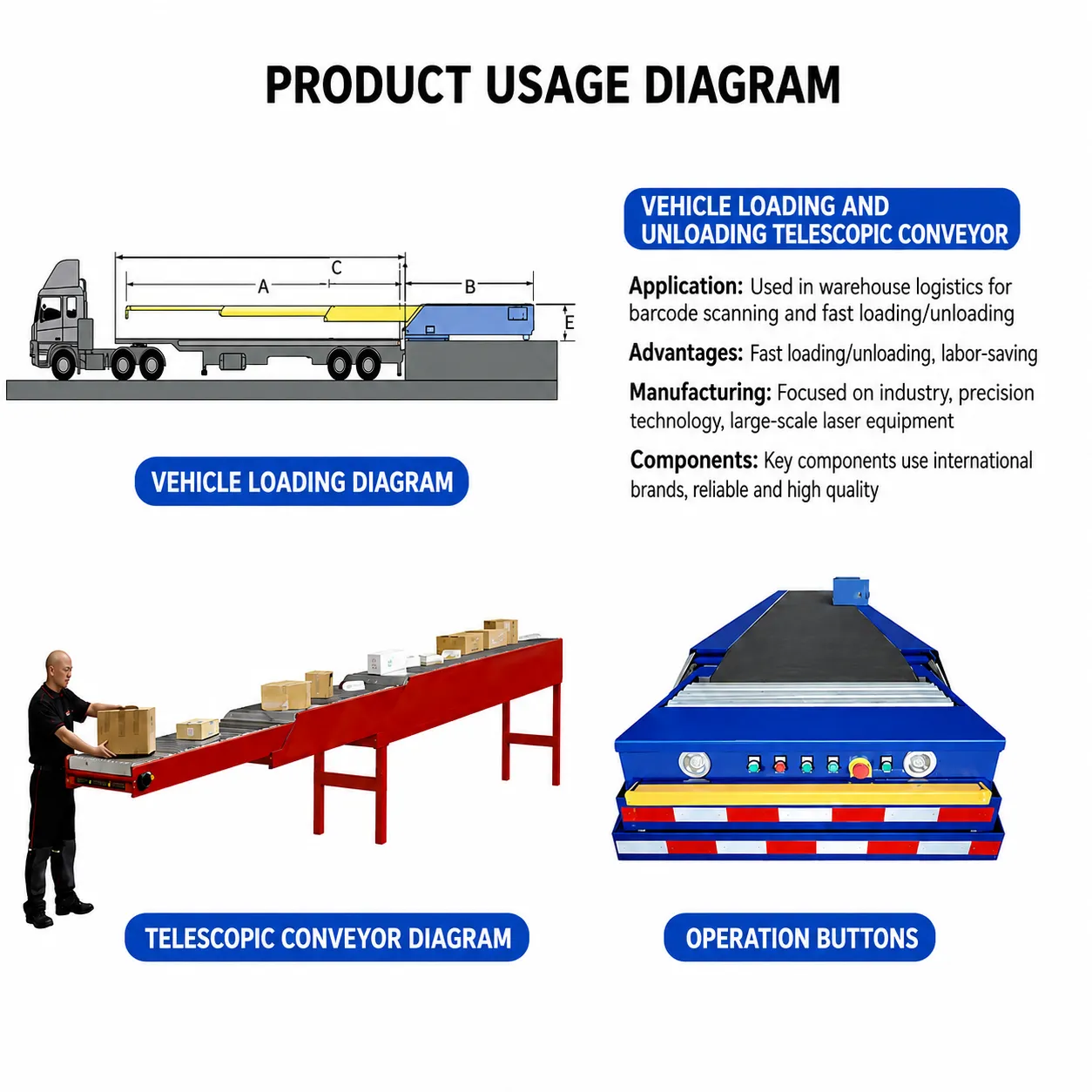

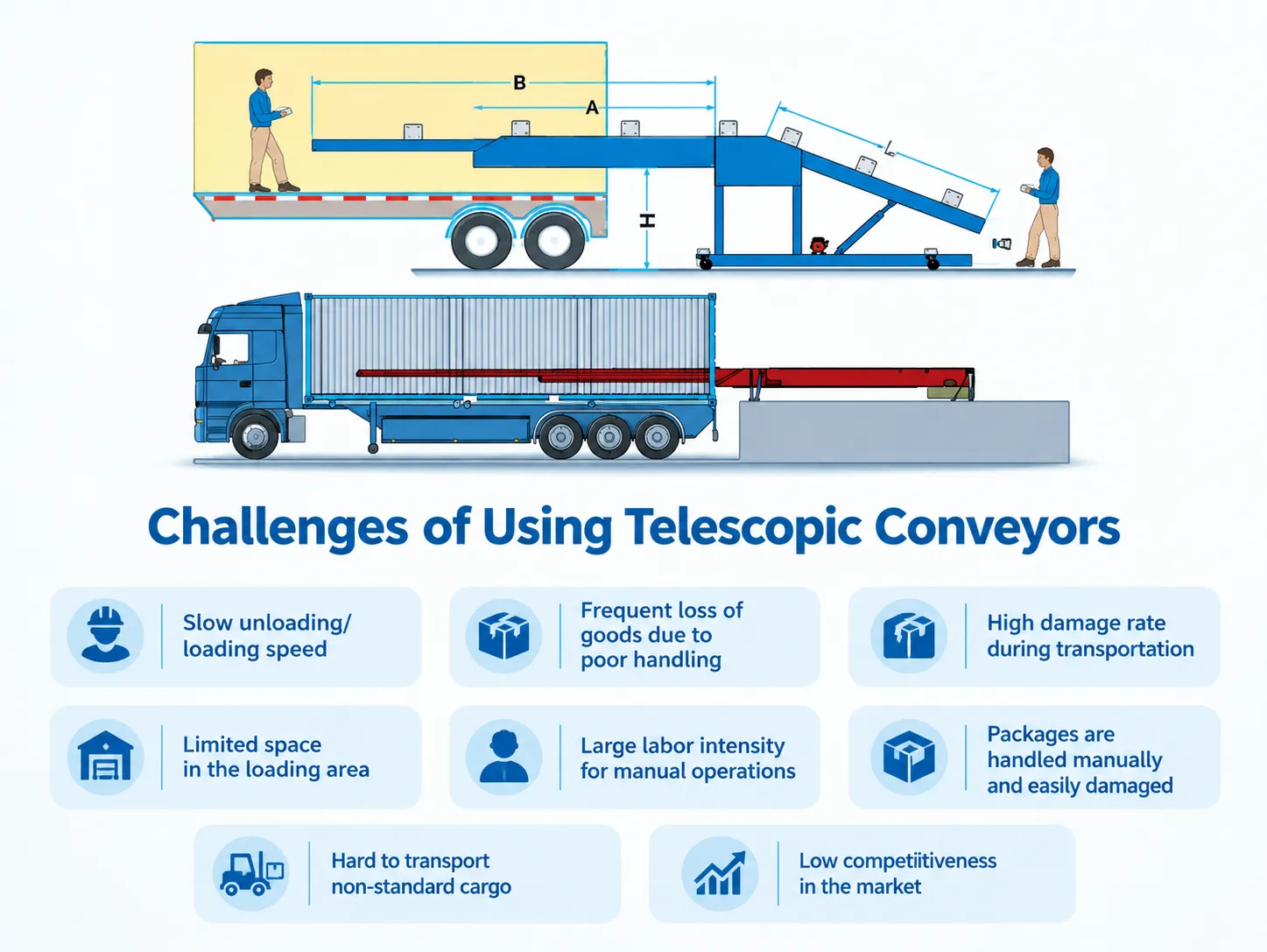

A conventional fixed conveyor can transport goods efficiently, but the final movement between the conveyor discharge point and the interior of a truck still depends heavily on manual handling.
The YJ-INTL telescopic conveyor changes this operating point.
The extendable conveyor section moves forward into the vehicle during loading or unloading. Operators can place or receive goods closer to the actual loading position instead of repeatedly walking between the dock and the truck.
This makes the equipment particularly useful when a facility has:
- Frequent truck loading and unloading
- Long vehicle loading depths
- High parcel or carton handling volume
- Limited dock-side operating space
- Repetitive manual loading operations
- Different vehicle positions or loading depths
From Dock Conveyor to Complete Logistics Automation
A telescopic conveyor is often the final physical link between the warehouse and the vehicle.
For a larger logistics automation project, it can be integrated into a material flow such as:
Inbound Receiving → Conveying → DWS / Scanning → Sortation → Parcel Consolidation → Telescopic Conveyor → Truck Loading
For e-commerce and express operations, this architecture allows the loading process to become part of the overall warehouse automation system instead of remaining a completely manual downstream activity. YJ-INTL can evaluate the telescopic conveyor together with the upstream conveying and sortation equipment to create a coordinated material-flow solution.
Adjustable Conveying and Telescopic Movement
The supplied configuration specifies:
Conveying speed: 10–40 m/min, variable-speed configuration
Telescopic speed: 10 m/min, variable-speed configuration
Variable-speed control allows the conveyor operating speed to be matched to the actual material flow and loading process. For projects connected with upstream conveyors, sortation systems or parcel handling equipment, the speed should also be coordinated with the capacity of the connected system to avoid unnecessary accumulation or gaps.
Applications
Truck Loading & Unloading
The primary application is loading and unloading cartons, parcels and packaged products from trucks and trailers.
The extendable boom can move closer to the cargo position, reducing unnecessary walking and manual carrying.
E-Commerce Fulfillment Centers
For fulfillment operations with frequent outbound truck loading, the telescopic conveyor can be installed downstream of the packing, consolidation or sorting area.
Express & Parcel Distribution Hubs
The system can be used at vehicle loading areas where parcels need to move continuously between the warehouse and delivery vehicles.
3PL Warehouses
Third-party logistics facilities often handle different customers, products and vehicle configurations. A configurable telescopic conveyor provides flexibility for dock operations.
Manufacturing & Distribution Facilities
The conveyor can also be applied to finished-goods loading, carton transfer and dispatch operations where products need to be moved into trucks or containers.
Telescopic conveyors are commonly used across logistics, e-commerce, postal, distribution and warehouse operations because the extendable section allows material flow to continue farther into the vehicle.
Why Choose YJ-INTL for Telescopic Conveyor Projects?
Application-Based Engineering
YJ-INTL designs conveyor configurations around the customer's actual loading process, warehouse layout and vehicle interface rather than treating the conveyor as an isolated machine.
Multiple Length Configurations
The 2-section design supports fixed sections from 3,000 to 7,000 mm with corresponding extension lengths from 2,000 to 6,000 mm.
Variable-Speed Operation
Conveying speed can be configured within the specified 10–40 m/min range to match the material flow.
Integrated Automation Capability
The telescopic conveyor can be considered as part of a wider material-handling system rather than a standalone loading machine.
Project-Specific Options
Hydraulic lifting, operating platforms, mobility-related components and counting functions can be evaluated according to project requirements.
Complete Logistics Equipment Capability
For customers building a complete parcel or warehouse automation line, YJ-INTL can combine telescopic conveyors with conveyors, sortation equipment, DWS and other material-handling equipment.
FAQ
A 2-section telescopic belt conveyor consists of a fixed conveyor section and an extendable conveyor section. The extendable section moves forward and backward to bring the conveying point closer to the inside of a truck, trailer or other loading area.
The main application is loading and unloading packaged goods such as cartons, parcels and bags in warehouses, distribution centers, logistics hubs, e-commerce facilities and manufacturing dispatch areas.
According to the supplied specification, the maximum extension section ranges from 2,000 to 6,000 mm depending on the selected fixed-section configuration.
The available fixed-section lengths shown in the specification are 3,000, 4,000, 5,000, 6,000 and 7,000 mm.
The specified conveying speed is 10–40 m/min with variable-speed control.
The specified telescopic movement speed is 10 m/min with variable-speed configuration.
The rated load shown in the supplied technical sheet is up to 80 kg/m². The final allowable load should be confirmed according to the actual material and conveyor configuration.
The specified belt is a 3 mm PVK impact-resistant composite belt with a mechanical belt connection.
The conveying drive uses a 1.5 kW motor according to the supplied product specification.
The telescopic movement uses a 0.4 kW motor according to the supplied product specification.
Yes. Truck loading and unloading is one of the primary applications of this type of conveyor. The extendable section allows the conveyor to reach farther into the vehicle and reduces the distance over which operators need to manually carry goods.
Yes. A hydraulic lifting configuration is listed as an available option. The final lifting arrangement should be selected according to dock height, vehicle floor height and operating requirements.
Yes. The conveyor can be designed as part of a larger material-handling line. The connection point, elevation, conveying direction, speed and control requirements should be confirmed during project engineering.
Important selection information includes dock height, vehicle dimensions, required extension distance, fixed installation length, product size and weight, conveying speed, daily loading volume and the configuration of upstream equipment.
Yes. YJ-INTL can evaluate the conveyor length, extension range, belt configuration, drive system, lifting arrangement and optional components according to the customer's warehouse and loading requirements.
